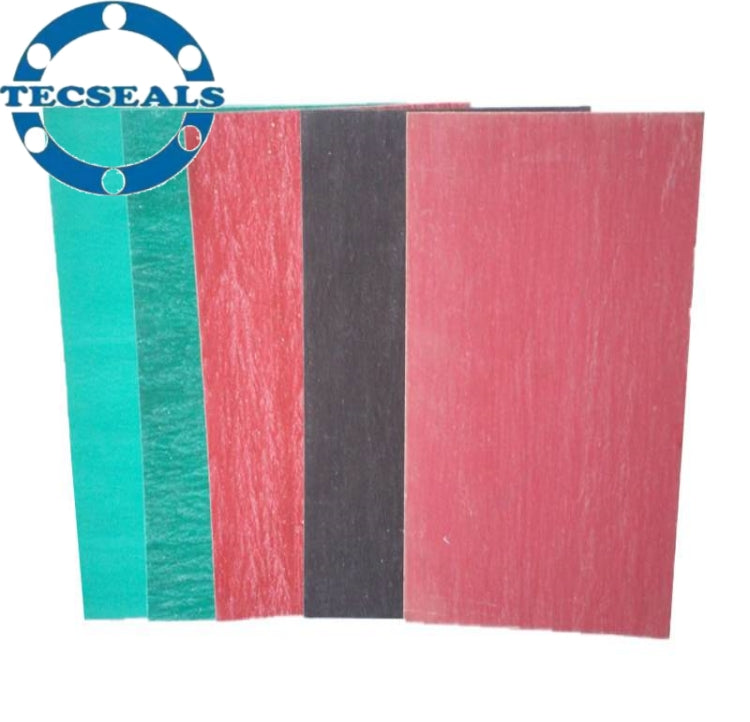

Acid-resisting Asbestos Rubber Sheet TC-1004
Acid-resisting Asbestos Rubber Sheet TC-1004
Couldn't load pickup availability
Specification:
Description: TC-1004 It is made of good asbestos fiber with acid-resisting synthetic rubber compression heating and compression molding it.
APPLICATION:
Mainly used for the equipment in acid, and used as sealing materials of gaskets for the flange of pipeline joints.
PARAMETER:
|
Item Style
|
1004A |
1004B |
1004C |
|
|
Horizontal Strain ≥MPa |
14 |
11 |
8 |
|
|
Weight-increasing |
96.17%( H2SO4) =18mol/L*48h |
≤30% |
≤30% |
≤30% |
|
36.97%(HCL)=12mol/L*48h |
≤25% |
≤25% |
≤25% |
|
|
10% (HNO3)= 1.67mol/L*48h |
≤20% |
≤20% |
≤20% |
|
|
Max. Pressure Mpa |
4.0 |
3.0 |
2.0 |
|
|
Max. Temperature ℃ |
400 |
300 |
200 |
|
|
Strain-decreasing %≤ |
50 |
|||
|
Aging Coefficient |
0.9 |
|||
|
Softness |
No Crack |
|||
|
Density g/cm 2 |
1.8-2.0 |
|||
|
Burning Loss % |
30 |
|||
|
Compressibility |
12±5 |
|||
|
Elasticity≥% |
40 |
|||
Available colour: Green, blue, white etc.
Available with tin steel, SS304 etc. wire mesh insertion
Also available with anti-stick or graphite coating
With your logo on request
DIMENSION:
1500×4000mm, 1500×2000mm
1500×1350mm, 1500×1000mm
1270×3810mm, 1270×1270mm
Thickness: 0.4~6mm
