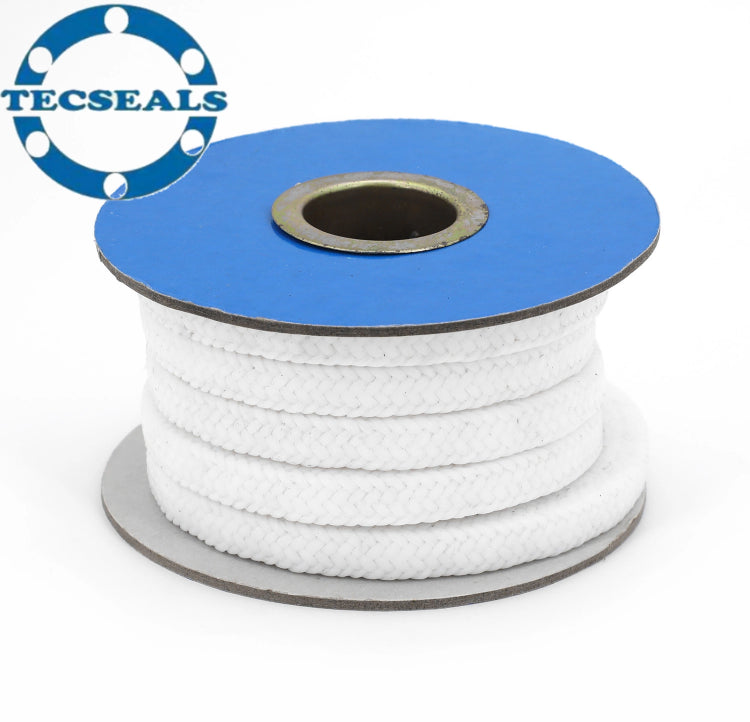

Arcylic Fiber Packing TC-601
Arcylic Fiber Packing TC-601
Specification:
Description:TC-601 Braided from high strength arcylic synthetic fiber pre-impregnated with PTFE, and re-impregnated during square braiding. It has excellent properties of sealing, lubricating and resistance to chemicals. 230L is acrylic fiber packing with oil and few PTFE
CONSTRUCTION:
TC-601 Arcylic Fiber Packing with Rubber Core
High elastic red silicone rubber core can absorb vibration, to control leakage, suitable for worn-out pumps.
APPLICATION:
Excellent multi-service for a wide variety of uses throughout a plant. Used in pumps and valves, and can handle most chemicals except strong acid, strong alkali and strong oxidizer.Especially for the condition of middle temp. high-pressure,high-speed,and where contamination is not permitted.
PARAMETER:
T |
2600C |
|
PH |
1~13 |
|
V |
20m/s |
|
P |
Rotating |
20bar |
Reciprocating |
80bar |
|
Valve |
100bar |
|
D-g/cm3 |
1.3 |
PACKAGING:
in coils of 5 or 10 kg, other package on request.
