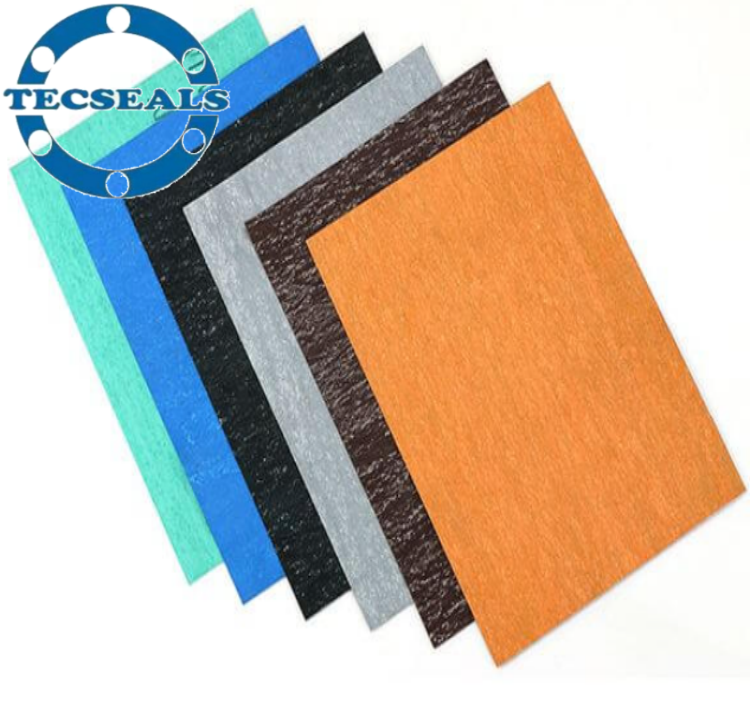

Asbestos Rubber Sheet TC-1001
Asbestos Rubber Sheet TC-1001
Couldn't load pickup availability
Specification:
Description: TC1001 is made from selected asbestos fibre, natural rubber, filling material and dye. A price worthy quality of dependable performance, plus adaptability to many sealing requirements makes this jointing the most economical sheet packing choice in the wide range of industrial fields.
PARAMETER:
|
Item |
Style |
|||
|
1001A |
1001B |
1001C |
1001D |
|
|
Tensile strength≥Mpa |
9 |
12 |
15 |
19 |
|
Aging coefficient |
0.9 |
0.9 |
0.9 |
0.9 |
|
Loss on ignition ≤% |
30 |
30 |
28 |
28 |
|
Compressibility ≥% |
12±5 |
12±5 |
12±5 |
12±5 |
|
Recovery ≥% |
40 |
40 |
45 |
45 |
|
Density g/cm3 |
1.6~2.0 |
|||
|
Tmax: 0C |
200 |
300 |
400 |
450 |
|
Pmax: Mpa |
2.3 |
3.5 |
5.0 |
6.0 |
|
Resistance to media |
Water, seawater, steam, diluted acid & alkali, gases, alcohols, salt solutions etc. under temperature and pressure. |
|||
Lower Grade on request
Available color: Purple, red, black, grey etc.
Available with tin steel, copper, SS304 etc. wire mesh insertion
Also available with anti-stick
With your logo on request
DIMENSION:
4000×1500mm; 2000×1500mm;1500×1500mm;
1500×1000mm;1270×1270mm; 3810×1270mm;
3810×2700mm
Thickness: 0.5~6mm
