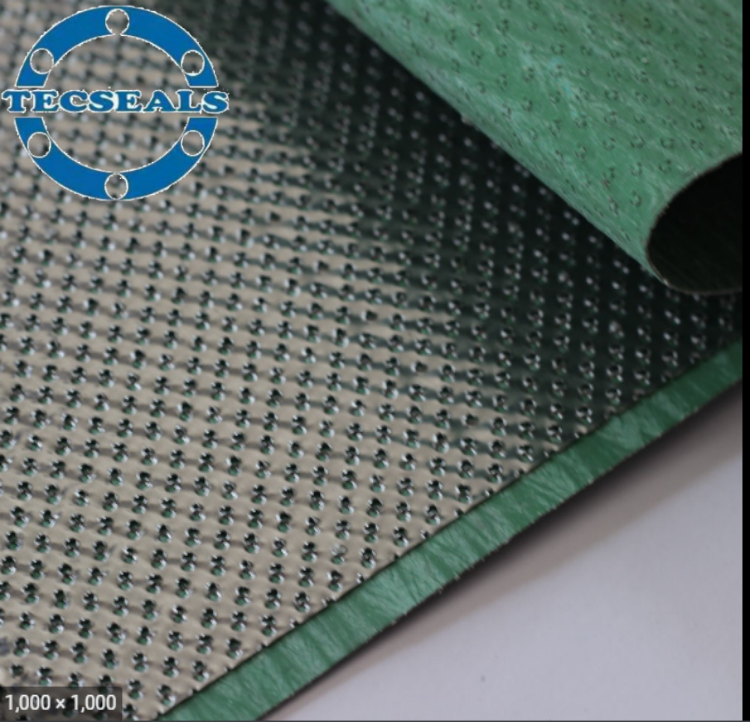

Asbestos Sheet with Wire Mesh TC-1002
Asbestos Sheet with Wire Mesh TC-1002
Couldn't load pickup availability
Specification:
Description: TC-1002 It is made from selected asbestos fiber, natural rubber, filling material and dye. A price worthy quality of dependable performance, plus adaptability to many sealing requirements makes this jointing the most economical sheet packing choice in the wide range of industrial fields. Both graphite coating is reinforced by wire mesh with both graphite coating
PARAMETER:
|
Item |
Style |
||
|
1002A
|
1002B
|
1002C
|
|
|
Tensile strength≥Mpa |
19 |
19 |
25 |
|
Aging coefficient |
0.9 |
0.9 |
0.9 |
|
Loss on ignition ≤% |
28 |
28 |
28 |
|
Compressibility ≥% |
12±5 |
12±5 |
12±5 |
|
Recovery ≥% |
45 |
45 |
45 |
|
Density g/cm3 |
1.8~2.0 |
1.8~2.0 |
2.0~2.2 |
|
Tmax: ℃ |
500 |
550 |
550 |
|
Pmax: Mpa |
12.0 |
12.0 |
20 |
|
Normal color |
Purple red |
Graphite |
Graphite |
|
Resistance to media |
Water, seawater, steam, diluted acid & alkali, gases, alcohols, salt solutions etc. under temperature and pressure. |
||
Also available with anti-stick
DIMENSION:
Thickness: 0.4~6mm
2000×1500mm; 1500×4000mm;
1500×1500mm; 1500×1000mm;
1270×1270mm; 3810×1270mm
New: 3810×2700mm
