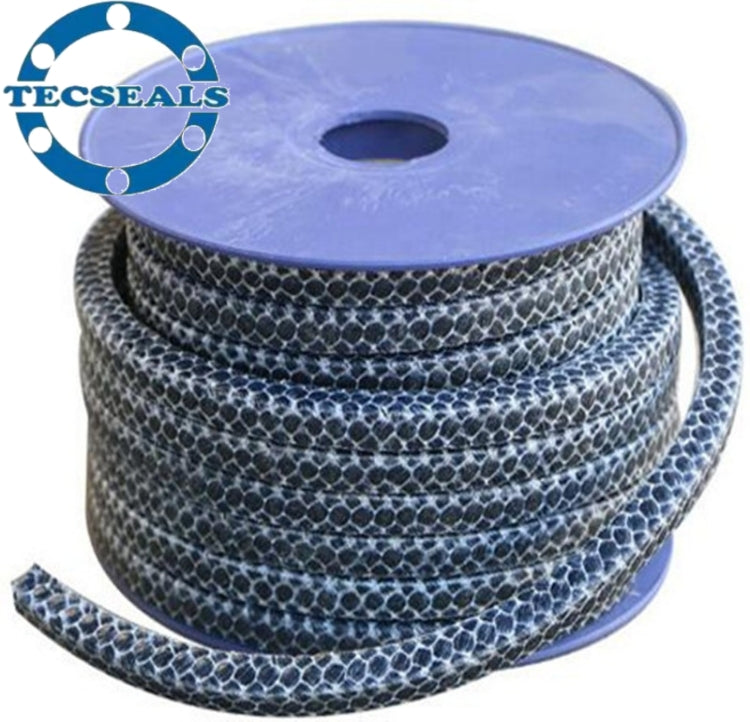

Carbon Fiber Packing TC-701

Carbon Fiber Packing TC-701

Regular price
Regular price Sale price
Sale Sold out

Specification:

Description:TC-701 Braided from strong carbon continuous yarns after softening, impregnated with proprietary lubricants and graphite particles, which fill voids, act as a break-in lubricant, and block leakage.

CONSTRUCTION:

TC-701  Carbon Fiber Packing Reinforced with Inconel wire

The Inconel wire reinforcement provides increased mechanical strength, usually for static.

APPLICATION:

To be used as packing material for stuffing boxes of pumps or valves in high pressure and high temperature application. To be used as stand-alone packing or in combination with 100 as anti-extrusion ring. In combination with pure graphite ring it presents the perfect seal for dry-running equipment like ventilators and fans.

Handle water, steam, acids and alkalis for power stations, refineries, boiler plants etc. Seats quickly, break-in without extensive adjustments. Style 240E is commonly used in steam turbines, high temperature motor-actuated valves and for high pressure, high temperature valve application in general.

PARAMETER:

Temperature

-50~+650 °C

Pressure

Rotating

25 bar

Reciprocating

100 bar

Valve

200 bar

Shaft speed

20m/s

PH Range

2~12

Density(appr.)

1.2~1.4g/cm3

PACKAGING:

in coils of 5 or 10 kg, other package on request.
