TECSEALS

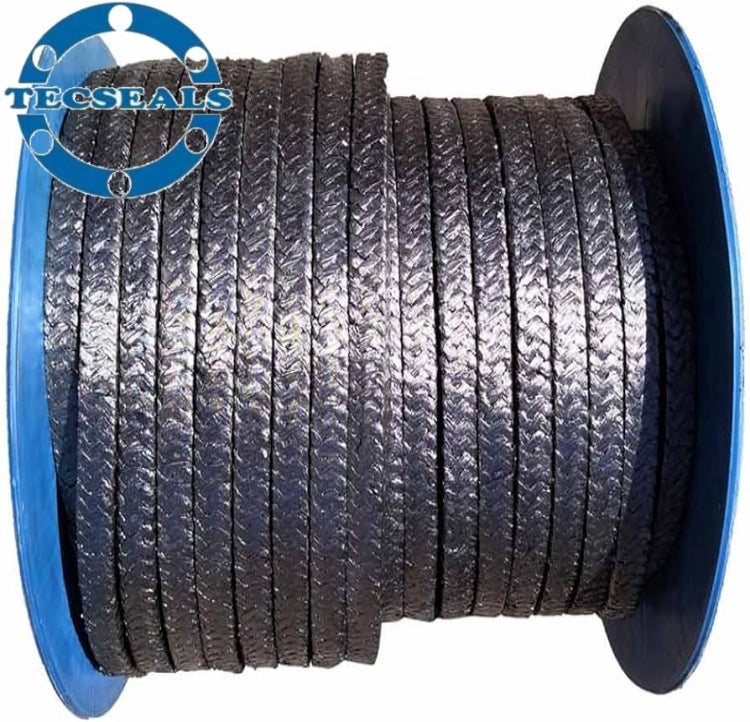

Carbonized Fiber Packing with Graphite TC-703

Carbonized Fiber Packing with Graphite TC-703

Regular price
Regular price Sale price
Sale Sold out

Specification:

Description:TC-703 Carbonized PAN fiber impregnated with PTFE dispersion containing graphite particles, PTFE and graphite makes the packing have excellent self lubrication.

CONSTRUCTION:

TC-703 Carbonized Fiber Packing Reinforced with Nickel wire

The wire reinforcement provides increased mechanical strength, usually for static.

APPLICATION:

It can be used in weak acids and alkalis or media containing few grains of solid particles, both dynamic and static, mainly used for centrifugal pumps, plunger pumps, mixers and valves.

Without cooling it can be used with hot water up to 160°C , with cooling it can be used with hot water up to 207°C. Particularly ideal for hot water, condensate and main coolant pumps.

PARAMETER:

Temperature

-50~+280 °C

Pressure-Shaft

Rotating

20 bar-25m/s

Reciprocating

100 bar-2m/s

Valve

200 bar-2m/s

PH Range

2~12

Density(appr.)

1.1~1.3g/cm3

PACKAGING:

in coils of 5 or 10 kg, other package on request.
