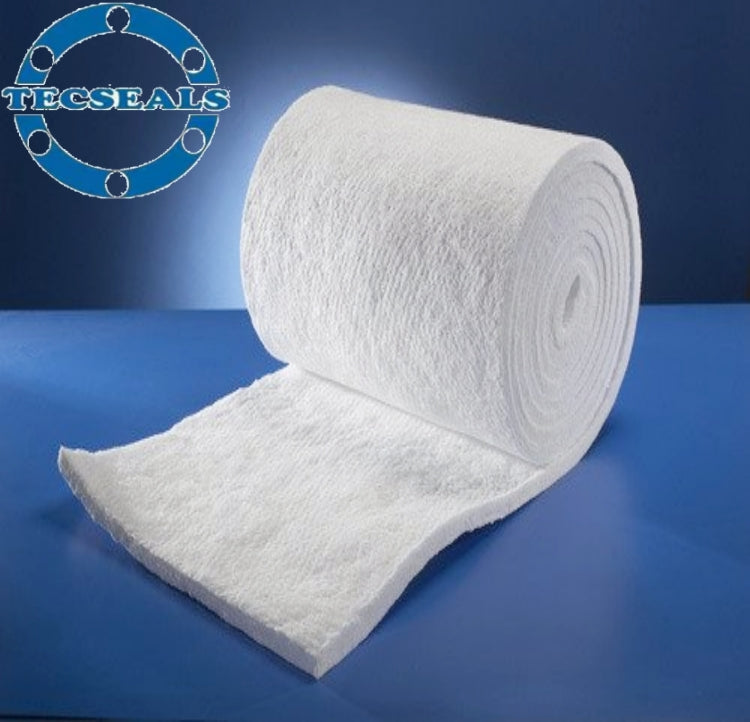

Ceramic Fiber Blanket TC-1810

Ceramic Fiber Blanket TC-1810

Sale Sold out

Specification:

Description:TC-1810 Ceramic fiber blanket is a new kind fire-resistant heat insulation material with white color, standard dimension and the function of fire-resistance, heat insulation and heat preservation. Without any bonding agent, good tensile strength, tenacity and fiber structure can be kept while using under the normal and oxidation condition. Temperature level is 1050-1430℃.

Ceramic Fiber Blanket

Characteristics:

Low thermal conductivity and low heat storage. Excellent thermal stability and thermal shock resistance. Excellent erosion resistance
Excellent heat insulation,fire proofing and procssing function.
Application Range:

Industrial furnace,heaters,inside walll of hige temperature rube. Electric power furnace,nuclear power station and heat insulation.
Fire proofing and heat insulation of high building.

Product name
Item

COM

ST

HP

HAA

HZ

Categorize the temperature(℃)

1100

1260

1260

1360

1430

The work temperature(<℃)

1000

1050

1100

1200

1350

The color

white

pure

pure

pure

pure

Physical volume density

(kg/m3)

96
128

96
128

96
128

128
160

128
160

Permanent line constringency (%)

( heat preservation 24 hours, physical volume density 128/ m3)

－4
(1000℃)

－3
(1000℃)

－3
(1100℃)

－3
(1250℃)

-3
(1350℃）

Each temperature descend transmit

 heat the coefficient ( w/ m.k)

( physical volume density 128 kgs/ m3)

0.09(400℃)
0.16(800℃)

0.09(400℃)
0.16(800℃)

0.09(400℃) 0.16(800℃)
0.20(1000℃)

0.12(600℃)
0.20(1000℃)

0.16(800℃)
0.20(1000℃)

The anti- pulls the strength( MPa)
( Physical volume density 128 kgs/ m3)

0.04

0.04

0.04

0.04

0.04

The chemistry composition(%)

AL2O3

40-44

45-46

47-49

52-55

39-40

AL2O3+SIO2

95-96

96-97

98-99

99

-

AL2O3+SIO2+ZrO2

-

-

-

-

99

ZrO2

-

-

-

-

15-17

Fe2O3

<1.2

<1.0

0.2

0.2

0.2

Na2O+K2O

≤0.5

≤0.5

0.2

0.2

0.2

SIZE(mm)

In common use specification:7200×610×10-50

Other specifications manufacture according to the customer request.
