TECSEALS

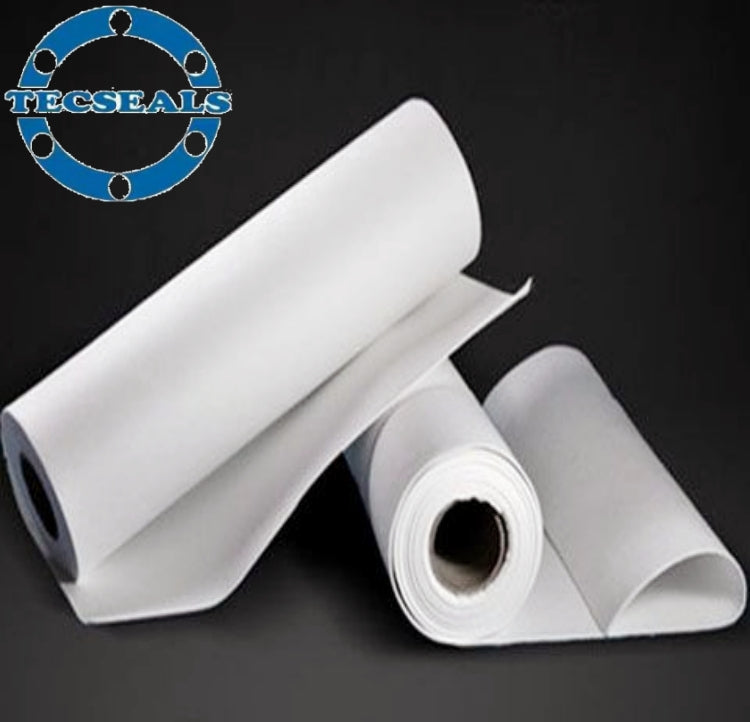

Ceramic Fiber Paper TC-1808

Ceramic Fiber Paper TC-1808

Regular price
Regular price Sale price
Sale Sold out

Specification:

Description:TC-1808 Ceramic fiber paper uses ceramic fiber spraying cotton and is made through washing and adding bonding agent under vacuum condition. They have high intensity, good flexility and strong scissoring performance and the ideal material for producing high temperature washer, airproofing, heat insulation and insulation. Temperature level is 1050-1260℃.

Ceramic fiber paper

Characteristics:

Low coefficient of heat-conduction ratio, low thermal capacity, Thermal shock resistance,
High quality of flexility and tear resistance. Not include asbestos, erosion resistance.

High quality of insulation and sound insulation.

Easiness of mechanical processing.

Tough texture and high quality of compression resistance.
Application rage:

Insulation, seal and safety materials for industrial need.

Insulation and heat insulation materials for electrica thermal equipments.

Insulation and heat insulation for equipments and electro thermal components.

Heat insulation materials for automobile.

Categorised temperature℃

1260

Density of volume(kg/m3)

170±15

Content of organic matter

6-8

Coefficient that
heat conduct under
average temperature

200℃

0.075-0.085

400℃

0.115-0.121

600℃

0.165-0.175

Main chemical
compositions (%)

AL2O3

47-49

AL2O3+SI2O3

98-99

Standard specification of the
prcducts

Thickness:0.5~6mm

Width:610/1220mm

Length:20m~80m
The special specification can be made to order according to user's enquiry
