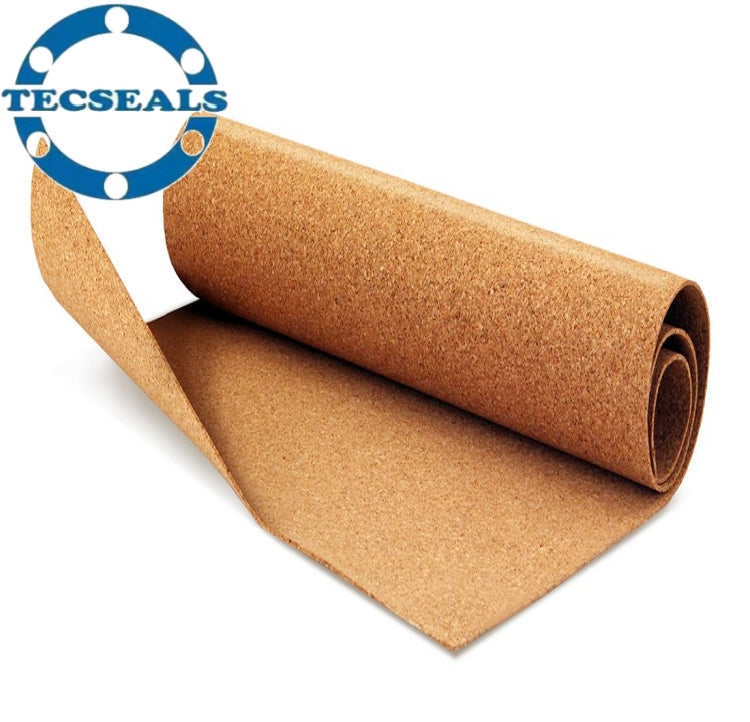

Cork Sheet TC-1204
Cork Sheet TC-1204
Couldn't load pickup availability
Specification:
Description:TC-1204 It is made of clean granulated cork mixed with resin binder, which is compressed to form block, then split into sheets. The sheets have properties of good resilience, good resistance to water, oil and solvents, and good compressibility and so on.
Distinguish from granule grade
|
Cork sheet(Granule grade) |
Big |
Middle |
Small |
|
Granules size (1/inch) |
8-12 |
12-24 |
30-60 |
|
Tensile strengthKg/cm2 |
8 |
12 |
12 |
|
Compressibility100psi load % |
15-40 |
10-30 |
5-25 |
|
Recovery % |
75 |
65 |
60 |
|
Flexibility Multiple |
15 |
12 |
15 |
|
Boiling water Resistance hour |
3 |
5 |
5 |
According with the standard ISO4714.
Distinguish from density
|
Density |
Low |
Middle |
High |
|
Kg/m3 |
270 |
320 |
380 |
DIMENTION:
Sheets：
950×640mm×0.8~100 mm (Untrimmed)
915×610mm×0.8~100 mm (Trimmed)
Packing: Carton
950×640mm×300 mm
915×610mm×300 mm
Roll：
1220mm×Length×1~6 mm
