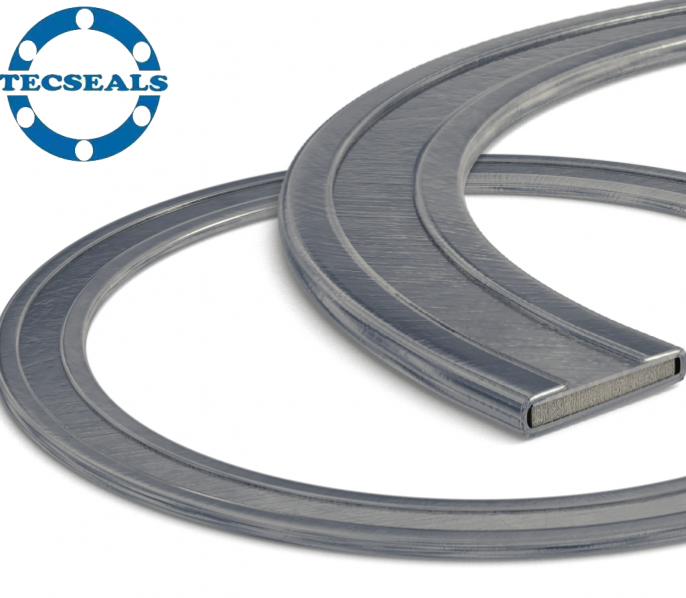

Double Jacketed Gasket TC-102

Specification:

Description: TC-102 Double Jacketed Gasket (DJG) is made from graphite, ceramic, non-asbestos etc. filler covered with thin metal jacket, such as stainless steel, carbon steel, copper etc. By their sealing efficiently, provide outstanding resilience, while the metal jacket guarantees excellent sealing and protects the filler against pressure conditions, fluctuating temperatures and corrosion.

102DJ Double Jacketed Plain Gasket

102DC Double Jacketed corrugated Gasket

102S DJG with Special Shape

APPLICATION:

102S DJG is particularly suitable for sealing flat surfaces of heat exchanges, gas pipes, cast iron flanges, cylinder heads of engines as well as for boilers and other vessels.

By their sealing efficiently, provided by exerting strong pressure on circular rimes of the flanges, metal-jacketed gaskets can stand up to 30% deviation from the initial thickness, which is very useful in case of irregular or faulty flange rims. The chemical compatibility of the metal and the medium being sealed should be considered.

MATERIAL:

Other special metal Ti, Mon 400 are also available on request.

Materials for the insert:

Flexible Graphite, ASB, Non-asb

ceramic fiber, mica etc
