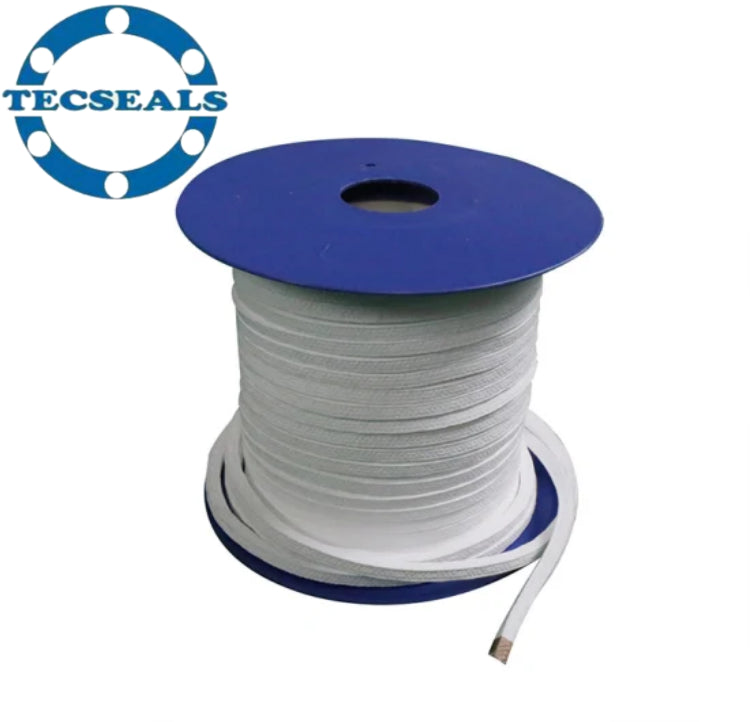

Glass fiber packing with PTFE impregnation TC-807

Specification:

Description:TC-807 Square braided from E-glass fiber impregnated with PTFE, that largely prevents solids from entering the seal and maintains its elasticity. It is suitable for pump and valves.

CONSTRUCTION:

Glass fiber is standout among the different organic and inorganic fibers as ideal replacement of asbestos. All fiberglass products are made of good quality E-glass fiber, it has many excellent capabilities of high strength and high temperature resistance, low density and low thermal conductivity, better insulation and incombustible etc.

Braided from E-glass fibers without any impregnation, will not shrink or swell in service. May be ordered square or with a rectangular cross section.

APPLICATION:

As a static seal for vessels, heaters, manhole, lids, covers, thermal insulation and fire-proof of pipes etc. Suited for chemically neutral and resistant to water, steam, hot air, oils and so on.

PARAMETER:

Temperature :       up to 600 °C

                             280°C for style 2600P

PH range:             5~9

PACKAGING:

In coils of 5 or 10 kg,
