TECSEALS

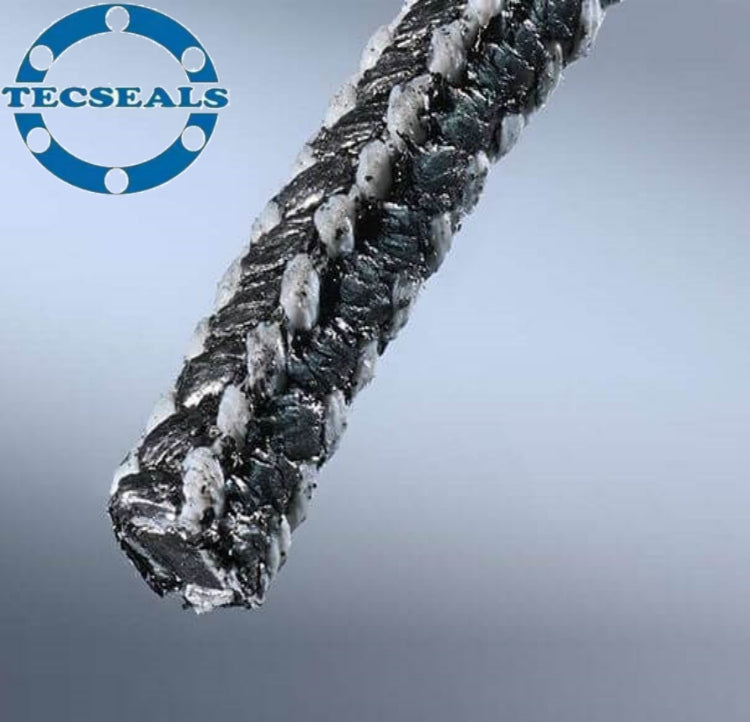

Graphite packing with PTFE corners TC-504
Graphite packing with PTFE corners TC-504
Regular price
$0.00
Regular price
Sale price
$0.00
Unit price
/
per
Couldn't load pickup availability
Specification:
Description:TC-504 PTFE corners effectively prevent graphite extrusion, this packing contains the advantage of PTFE and graphite. Graphited PTFE corner TC-501 is also efficient.
APPLICATIONG:
Can be used in many demanding applications, both dynamic and static. Particularly suited for high temperature and high pressure service in valves, pumps, expansion joints, mixers and agitators of pulp and paper, power station and chemical plant etc.
PARAMETER:
Temperature |
+280°C |
|
Pressure-Speed |
Rotating |
25bar-20m/s |
Reciprocating |
100bar-20m/s |
|
Valve |
300 bar-20m/s |
|
PH range |
0~14 |
|
Density |
1.3~1.5g/cm3 |
PACKAGING:
in coils of 5 or 10 kg, other package on request.
