TECSEALS

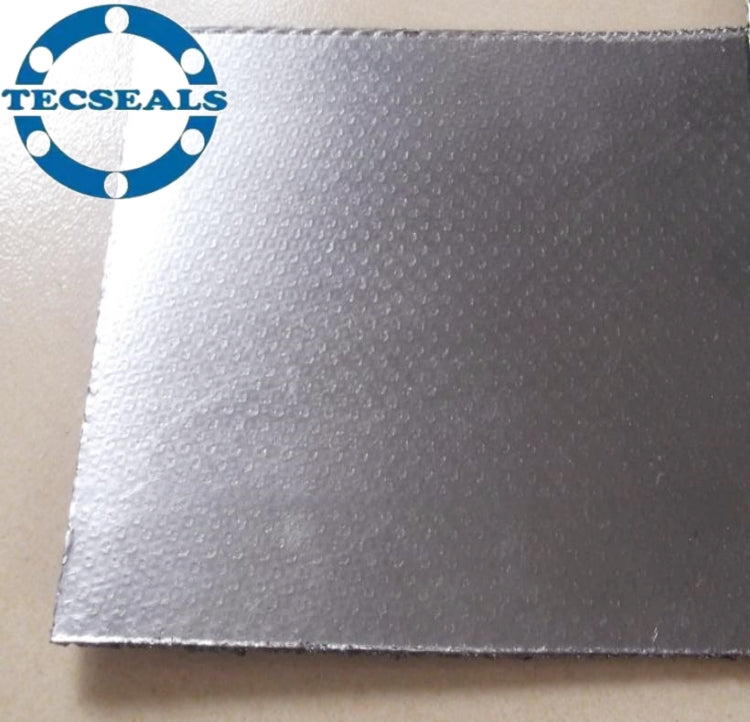

Graphite Sheet with Tanged Metal TC-1403

Graphite Sheet with Tanged Metal TC-1403

Regular price
Regular price Sale price
Sale Sold out

Specification:

Description:TC-1403 Grafoil TC-1403 is made of expanded flexible graphite TC-1403reinforced by a tanged stainless steel-carrier of 304 or 316, Nickel, 0.10mm~0.12mm thick, graphite content of more then 98 %, graphite bulk density 1.0 g/cm3.

APPLICATION:

Made for various gaskets.

Suitable for Petrochemical, Mining, Vessels, Boilers, Piping and Duct, Pumps and Valves, Flanges,

PARAMETER:

Temperature:   -200 up to 550°C

Pressure:       up to 500 bar

PH Range:      0 - 14

BENEFIT:

Permanently elastic, even in hot-cold cycles over the entire temperature range, no aging, no brittleness, no hot or cold flow, long time uniform compressibility and resiliency independent of temperature.

MEDIA:

Steam, mineral oils, heat transfer oils, hydraulic oil, fuel, water, seawater, freshwater etc.

DIMENSION:

1000 x 1000 x 1.0 ; 1.5 ; 2.0 ; 3.0mm

1000 x 2000 x 1.0 ; 1.5 ; 2.0 ; 3.0mm

1500 x 1500 x1.0 ; 1.5 ; 2.0 ; 3.0mm

1500 x 2000 x1.0 ; 1.5 ; 2.0 ; 3.0mm
