TECSEALS

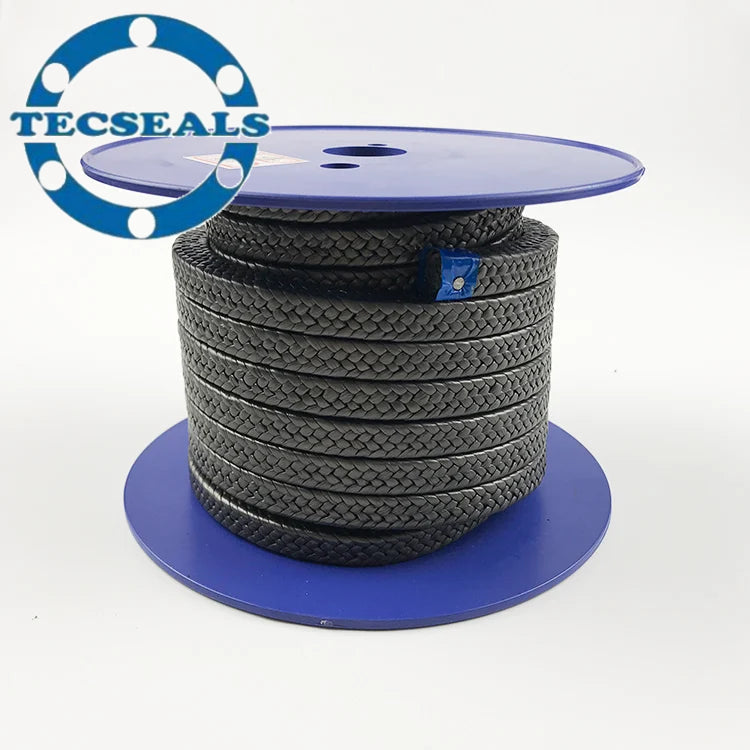

Graphited PTFE Packing with oil TC-305

Graphited PTFE Packing with oil TC-305

Regular price
Regular price Sale price
Sale Sold out

Specification:

Description:TC-305 Packing made of 100% gPTFE yarns, and re-impregnated with a silicone lubricant with density about 1.6g/cm3. It is also economical gPTFE packing.

APPLICATION:

For use in pumps, valves, reciprocating and rotating shafts, mixers and agitators. Especially designed for services involving surface speeds and temperature higher than those normally specified for pure PTFE packings. Can be safely used in all chemical pump applications with the exception of molten alkali metals, fluoride, fuming nitric acid and other strong oxidizing agents. It is also against water, steam, petroleum derivatives, vegetable oil and solvents.

PARAMETER:

Pressure

Rotating

15 bar

Reciprocating

100 bar

Static

200 bar

Shaft speed

12 m/s

Density

1.65g/cm3

Temperature

-150~+280°C

PH range

0~14

DIMENSIONS:

in coils of 5 to 10 kg, other weight on request;
