Kammprofile Gasket TC-105
Kammprofile Gasket TC-105
Specification:

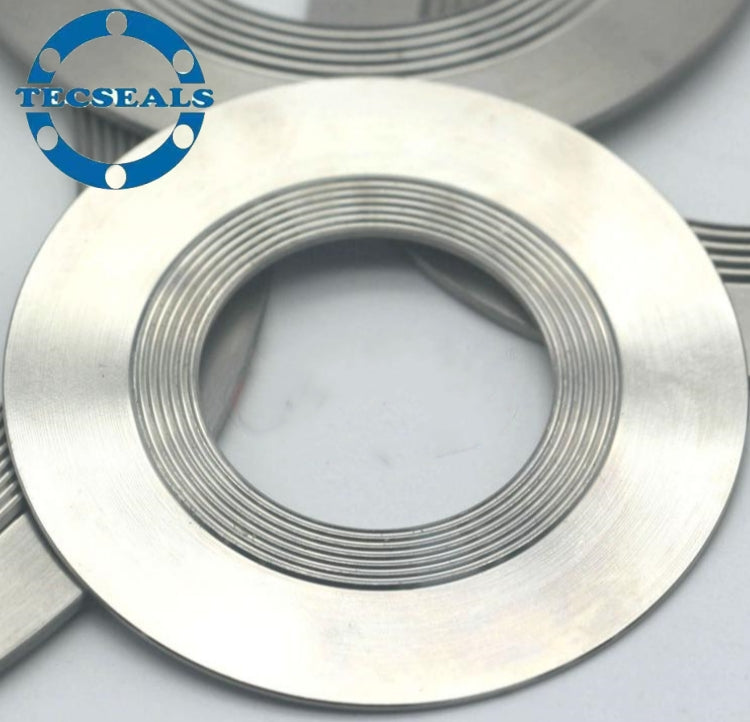

Description:TC-105 KammprofileTM Gasket (Serrated Metallic Gasket) consist of a metal core, generally stainless steel with concentric grooves on both sides. A sealing layer is usually applied on either side and depending on the service duty the material for this layer can be expanded graphite, PTFE, Asbestos free gasket sheeting materials or some soft metal. It can be used without sealing layers to provide an excellent sealing but there is a risk of flange surface damage especially at high seating pressure.
105Basic Type Kammprofile Gasket
105JR Kammprofile Gasket with integral Outer Ring
105SR Kammprofile Gasket with Loose Outer Ring
Depending on centering ring with cheaper material (Normal: CS) and thinner thickness (Normal: 1.5mm) for Style 105SR, maybe it is more economical than 105JR.
APPLICATION:
KammprofileTM gasket is the preferred gasket when improved performance at low seating stresses is required. It features excellent anti-blow-out properties linked with the reliably of a solid metal-to-metal seal combined with a soft sealing face to provide a tighter joint. It is particularly suitable for applications where high temperature, pressures and fluctuating conditions are encountered. Non-metal cover layers ensure that flanges are not damaged, even at extreme loads. This gasket is an ideal replacement for problem applications associated with jacketed gaskets, for heat exchangers, vessels and reactors and various flange connections. Pressure: (6.4~25Mpa)
MATERIAL:
Metal material |
Din Material No. |
Hardness HB |
Temp. ℃ |
Density g/cm3 |
Thick. mm |
CS/Soft Iron |
1.1003/1.0038 |
90~120 |
-60~500 |
7.85 |
2 3 4 |
SS304, SS304L |
1.4301/1.4306 |
130~180 |
-250~550 |
7.9 |
|
SS316, SS316L |
1.4401/1.4404 |
130~180 |
-250~550 |
7.9 |
Other special metal is also available on request.
Materials for the faces:
Flexible Graphite, PTFE, Non-asb, etc.
Normal with thickness 0.5 mm
