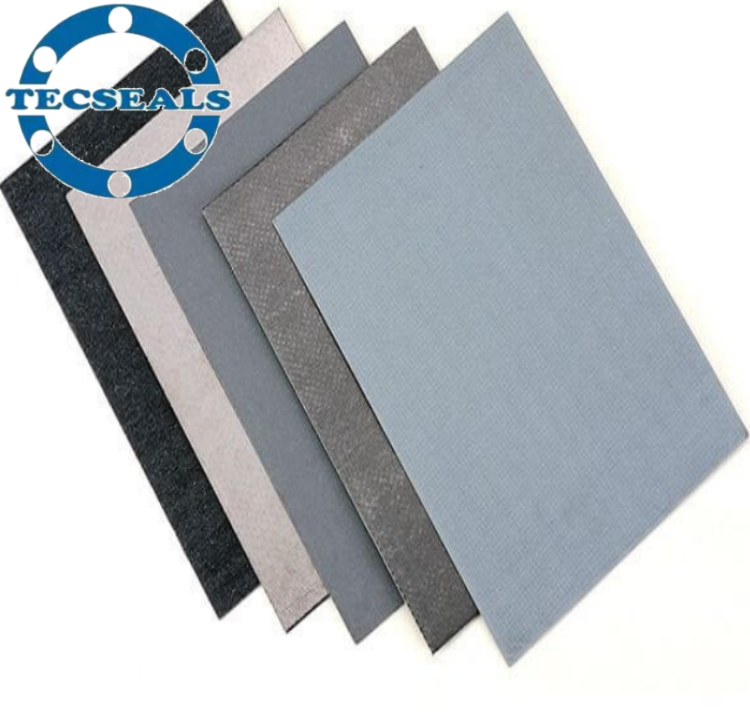

Non-asbestos Beater Sheet TC-903
Non-asbestos Beater Sheet TC-903
Couldn't load pickup availability
Specification:
Description: TC-903 Non-asbestos beater sheet is made from synthetic emulsion, plants fiber and filling material. The production is used for position of lubrication system, which has the property of good compressibility and coefficient of resilience, in addition, the inside of gasket can properly swell to meet oil, that make up of the shortcoming that procession machining precision is not enough, which affected self-sealing.
PARAMETER:
Used in Automobile, farm machinery, motors, engineering etc. It can be used in oil system and water supply system at temperature 150℃
|
Item |
Uint |
903A |
903B |
|
Density |
g/cm |
0.9~1.1 |
1.2~1.4 |
|
Tensile strength |
≥Mpa |
12.7 |
|
|
Compressibility |
% |
15±5 |
|
|
Recovery |
≥% |
45 |
|
|
Stress relaxation |
≤% |
35 |
|
|
Weight increase (in oil) |
≤% |
35 |
|
|
Thickness increase (in oil) |
≤% |
15 |
|
Normal color: Grey, Black, other color on request
Also available with anti-stick or graphite coating.
TOLERANCE:
|
Item |
Tolerance |
In same sheet |
|
Thickness |
±mm |
mm |
|
0.5 |
0.05 |
0.06 |
|
0.6-0.8 |
0.06 |
0.08 |
|
1-2 |
0.08 |
0.08 |
DIMENSIONS:
Width: 500mm; 1000mm
Length: 500mm; 1000mm; 1200; 1500mm
Thickness: 0.3~2.0mm
