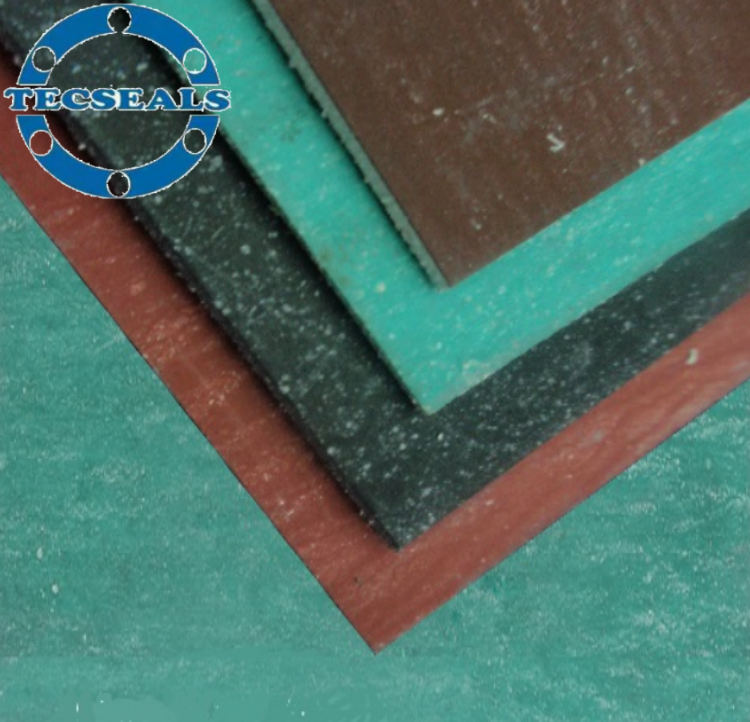

Oil-resisting Asbestos Rubber Sheet TC-1003
Oil-resisting Asbestos Rubber Sheet TC-1003
Couldn't load pickup availability
Specification:
Description:TC-1003 It’s an effective oil resistance asbestos-rubber sheets, are made from selected asbestos fiber, synthetic rubber, filling material and dye. Used in pipelines and apparatus of petrochemical & oil fields
PARAMETER:
|
Item |
Style |
||||
|
1003A |
1003B |
1003C |
1003D |
||
|
Tensile strength≥Mpa |
9 |
11 |
12.7 |
13 |
|
|
Compressibility≥% |
12±5 |
||||
|
Recovery≥% |
35 |
45 |
50 |
50 |
|
|
Density g/cm3 |
1.6~2.0 |
||||
|
Tmax: ℃ |
200 |
300 |
400 |
500 |
|
|
Pmax: Mpa |
1.5 |
2.5 |
3.0 |
4.0 |
|
|
At 20# air lub oil,15~30℃ for 30min |
Tensile strength≥Mpa |
8 |
9 |
10.8 |
26 |
|
Oil absorption≤ % |
23 |
23 |
23 |
9 |
|
|
Thickness increase% |
|
20 |
15 |
15 |
|
|
At 75# gasoline /3# 15~30℃ for 5h |
Tensile strength≥Mpa |
6 |
7 |
7.9 |
14.7 |
|
Oil absorption≤ % |
22 |
22 |
22 |
15 |
|
|
Thickness increase% |
|
25 |
25 |
20 |
|
|
Oil sealing Mpa |
8 |
10 |
12 |
14 |
|
|
Resistance to media |
Oils, refrigerators, solvents etc. |
||||
Available colour: Green, blue, white etc.
Available with tin steel, SS304 etc. wire mesh insertion
Also available with anti-stick or graphite coating
With your logo on request
DIMENSION:
1500×4000mm, 1500×2000mm
1500×1350mm, 1500×1000mm
1270×3810mm, 1270×1270mm
New: 3810×2700mm
