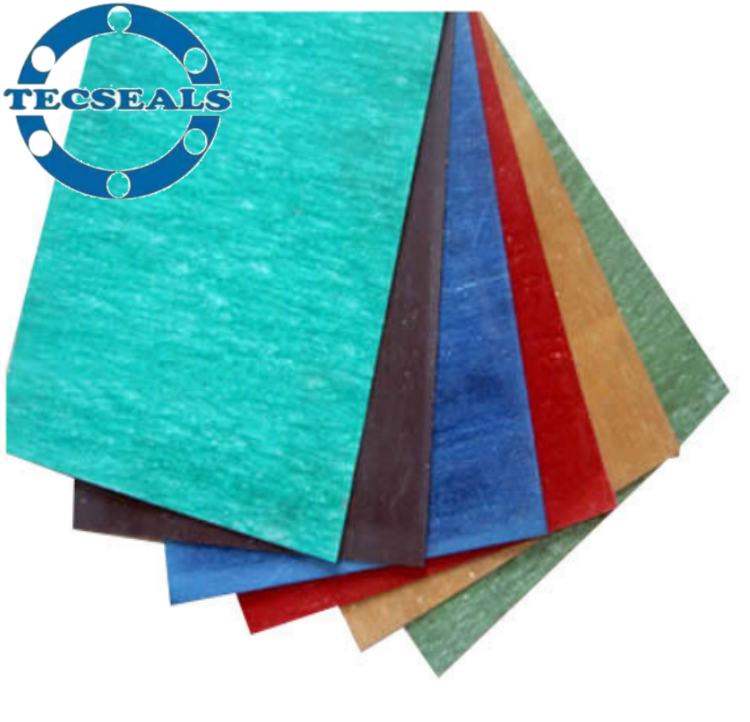

Oil-resisting Non-asbestos Sheet TC-902
Oil-resisting Non-asbestos Sheet TC-902
Couldn't load pickup availability
Specification:
Description:TC-902 Our oil-resisting non-asbestos sheet is made from Kevla fibre, synthetic rubber, filling material and dye, compressed and calendered under high temperature and pressure into a sheet form. It eliminates asbestos-rubber sheet essentially and thoroughly.
PARAMETER:
|
Item |
Style |
||
|
9021 |
9022 |
9023 |
|
|
Density g/cm3 |
1.7~1.9 |
1.7~1.9 |
1.7~1.9 |
|
Tensile strength ≥Mpa |
8 |
11 |
12.5 |
|
Compressibility ≥% |
12±5 |
12±5 |
12±5 |
|
Recovery ≥% |
45 |
50 |
50 |
|
Aging coefficient |
0.9 |
0.9 |
0.9 |
|
Stress relaxation ≤% |
45 |
45 |
45 |
|
Steam Sealing |
Tmax: 200℃ Pmax: 2~3Mpa 30min no shock |
Tmax: 300℃ Pmax: 4~5Mpa 30min no shock |
Tmax: 400℃ Pmax: 8~9Mpa 30min no shock |
|
Tmax: ℃ |
200 |
300 |
400 |
|
Pmax: Mpa |
1.5 |
3.0 |
5.0 |
|
Resistance to media |
Oil fuel, gases, salt solutions and many other media. |
||
Normal colour: Black with some white, Blue or Green-white etc.
Available with tin steel, copper, SS304 etc. wire mesh insertion.
Also available with anti-sticK or graphite coating.
With your logo on request.
DIMENSIONS:
Thickness: 0.4~5mm
2000×1500mm; 1500×4000mm;1500×1500mm;
1500×1000mm;1270×1270mm; 3810×1270mm
