TECSEALS

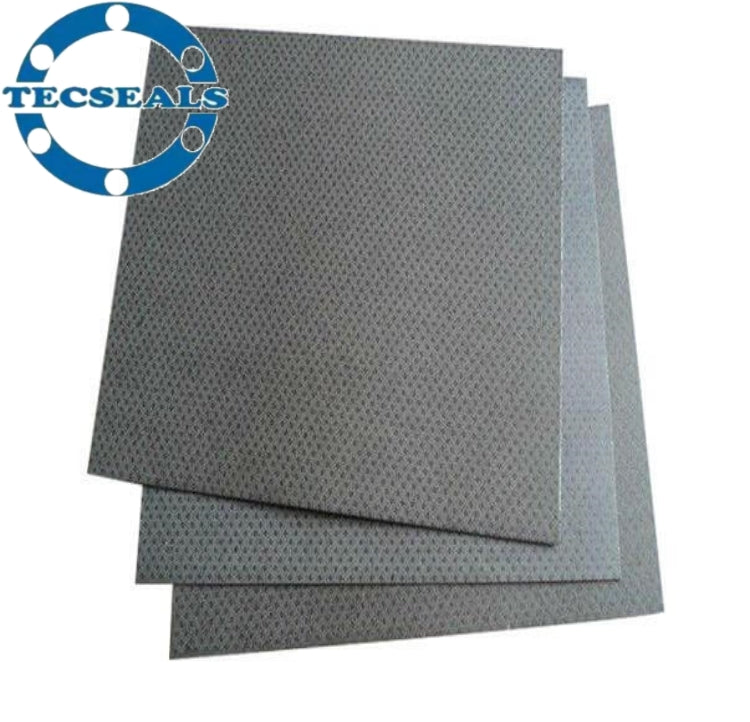

Reinforced (Non-)Asbestos Beater Sheet TC-904
Reinforced (Non-)Asbestos Beater Sheet TC-904
Couldn't load pickup availability
Specification:
Description: TC-904 It is made of Non-asbestos gasket sheet reinforced with tanged 0.2-0.25mm Carbon Steel. It is extensively applied in manufacturing various motor gaskets. It is a new material that will substitute asbestos products. The product has excellent performance in dilatability, sealing equality and long life etc., Mainly applied in automobile farming machine, motorcycle and engineering etc., it is also can be used in high strength gaskets and cylinder gaskets etc.
PARAMETER:
|
Density g/cm3 |
1.30~1.50 |
|
Tensile strength ≥Mpa |
12.7 |
|
Compressibility ≥% |
10±5 |
|
Recovery ≥% |
40 |
|
Sealing performance |
<0.5cm3/min |
|
Performance of heat-resistance |
150-300°C |
Normal colour: Black, Gray, Graphite etc.
Available with SS304. wire mesh insertion
Also available with anti-stick silicon resin or graphite coating.
DIMENSIONS:
500×1000mm; 500×1200mm; 500×1500mm;
510×1016mm; 510×1530mm;
1000×1000mm; 1000×1500mm;
Thickness: 1.0~2.4mm
