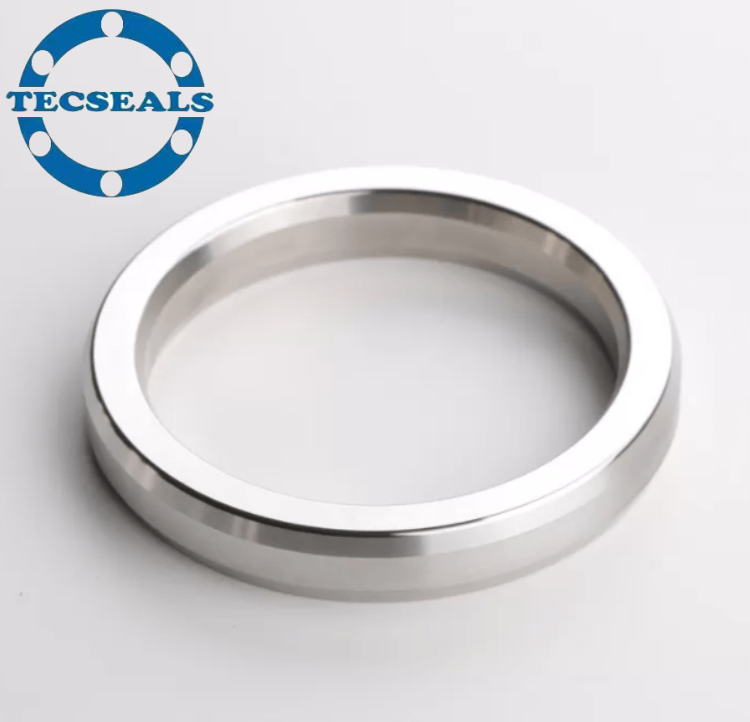

Ring Joint Gasket TC-104
Ring Joint Gasket TC-104
Couldn't load pickup availability
Specification:
Description: TC-104 is machined from solid metal in a variety of shapes and designed for high pressure, high temperature or highly corrosive applications by selecting the most suitable material and shape. It is designed to withstand exceptionally high assembly loads over a small area, thus producing high seating stresses.
104PL Plain type RJG
104OV Oval type RJG
104OC Octagonal type RJG
104RX RX type RJG
104BX BX type RJG
104S Special type RJG
MATERIALS:
|
Material |
Code Sample |
Hardness(HB) |
T(℃) |
|
Soft Iron |
R23 SI |
90 |
530 |
|
Carbon Steel |
R23 CS |
120 |
530 |
|
304(L)、321、316(L) |
R23 S304 |
160 |
750 |
|
5Cr1/2Mo |
R23 F5 |
130 |
500 |
|
Copper for 640PL |
|
50 |
400 |
|
Aluminium for 640PL |
|
30 |
300 |
DIMENSIONS:
|
Standards for Ring Joints Gaskets used with flanges |
||
|
RJG Style |
RJG standard |
Flange standard |
|
R |
ASME B 16.20 API 6A |
ANSI B 16.5 ANSI B 16.47 Series A |
|
RX |
ASME B 16.20 API 6A |
API 6B |
|
BX |
API 6A |
API 6BX |
Can be ordered according to the detailed drawing.
